本篇文章给大家带来的内容是关于Spring Security原理的介绍(附代码),有一定的参考价值,有需要的朋友可以参考一下,希望对你有所帮助。

知彼知己方能百战百胜,用 Spring Security 来满足我们的需求最好了解其原理,这样才能随意拓展,本篇文章主要记录 Spring Security 的基本运行流程。

过滤器

Spring Security 基本都是通过过滤器来完成配置的身份认证、权限认证以及登出。

Spring Security 在 Servlet 的过滤链(filter chain)中注册了一个过滤器 FilterChainProxy,它会把请求代理到 Spring Security 自己维护的多个过滤链,每个过滤链会匹配一些 URL,如果匹配则执行对应的过滤器。过滤链是有顺序的,一个请求只会执行第一条匹配的过滤链。Spring Security 的配置本质上就是新增、删除、修改过滤器。

Spring Security原理的介绍(附代码)

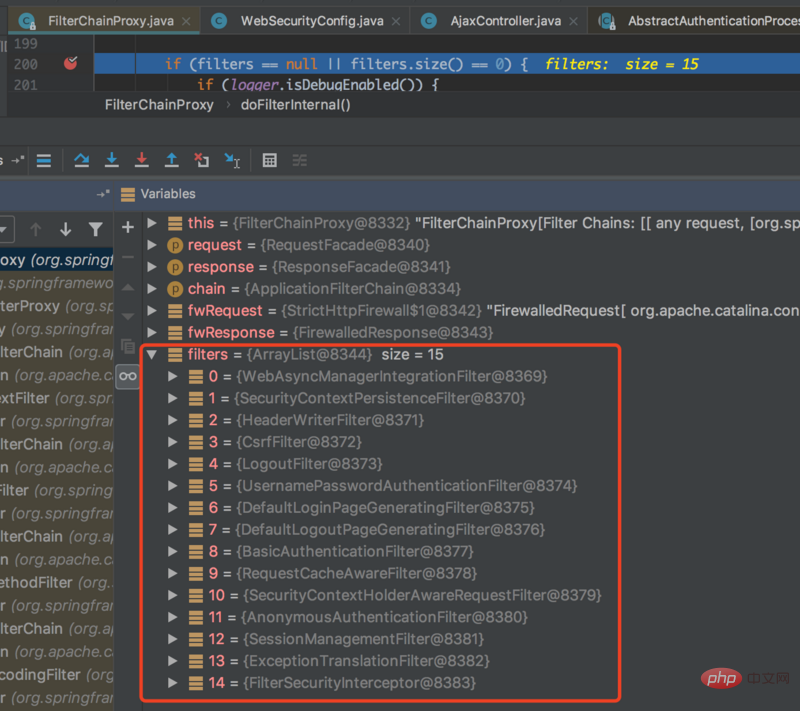

默认情况下系统帮我们注入的这 15 个过滤器,分别对应配置不同的需求。接下来我们重点是分析下 UsernamePasswordAuthenticationFilter 这个过滤器,他是用来使用用户名和密码登录认证的过滤器,但是很多情况下我们的登录不止是简单的用户名和密码,又可能是用到第三方授权登录,这个时候我们就需要使用自定义过滤器,当然这里不做详细说明,只是说下自定义过滤器怎么注入。

@Overrideprotected void configure(HttpSecurity http) throws Exception {        http.addFilterAfter(...);    ... }

身份认证流程

知识兔

在开始身份认证流程之前我们需要了解下几个基本概念

  1. SecurityContextHolder

SecurityContextHolder 存储 SecurityContext 对象。SecurityContextHolder 是一个存储代理,有三种存储模式分别是:

  • MODE_THREADLOCAL:SecurityContext 存储在线程中。
  • MODE_INHERITABLETHREADLOCAL:SecurityContext 存储在线程中,但子线程可以获取到父线程中的 SecurityContext。
  • MODE_GLOBAL:SecurityContext 在所有线程中都相同。

SecurityContextHolder 默认使用 MODE_THREADLOCAL 模式,SecurityContext 存储在当前线程中。调用 SecurityContextHolder 时不需要显示的参数传递,在当前线程中可以直接获取到 SecurityContextHolder 对象。

SecurityContext context = SecurityContextHolder.getContext();Authentication authentication = context.getAuthentication();

2.Authentication

Authentication 即验证,表明当前用户是谁。什么是验证,比如一组用户名和密码就是验证,当然错误的用户名和密码也是验证,只不过 Spring Security 会校验失败。

Authentication 接口

public interface Authentication extends Principal, Serializable {       //获取用户权限,一般情况下获取到的是用户的角色信息       Collection<? extends GrantedAuthority> getAuthorities();       //获取证明用户认证的信息,通常情况下获取到的是密码等信息,不过登录成功就会被移除       Object getCredentials();       //获取用户的额外信息,比如 IP 地址、经纬度等       Object getDetails();       //获取用户身份信息,在未认证的情况下获取到的是用户名,在已认证的情况下获取到的是 UserDetails (暂时理解为,当前应用用户对象的扩展)       Object getPrincipal();       //获取当前 Authentication 是否已认证       boolean isAuthenticated();       //设置当前 Authentication 是否已认证       void setAuthenticated(boolean isAuthenticated);}

3.AuthenticationManager ProviderManager AuthenticationProvider

其实这三者很好区分,AuthenticationManager 主要就是为了完成身份认证流程,ProviderManager 是 AuthenticationManager 接口的具体实现类,ProviderManager 里面有个记录 AuthenticationProvider 对象的集合属性 providers,AuthenticationProvider 接口类里有两个方法

public interface AuthenticationProvider {    //实现具体的身份认证逻辑,认证失败抛出对应的异常    Authentication authenticate(Authentication authentication)            throws AuthenticationException;    //该认证类是否支持该 Authentication 的认证    boolean supports(Class<?> authentication);}

接下来就是遍历 ProviderManager 里面的 providers 集合,找到和合适的 AuthenticationProvider 完成身份认证。

4.UserDetailsService UserDetails

在 UserDetailsService 接口中只有一个简单的方法

public interface UserDetailsService {    //根据用户名查到对应的 UserDetails 对象    UserDetails loadUserByUsername(String username) throws UsernameNotFoundException;}

5.流程

对于上面概念有什么不明白的地方,在们在接下来的流程中慢慢分析

在运行到 UsernamePasswordAuthenticationFilter 过滤器的时候首先是进入其父类AbstractAuthenticationProcessingFilter的 doFilter() 方法中

public void doFilter(ServletRequest req, ServletResponse res, FilterChain chain)        throws IOException, ServletException {    ...    //首先配对是不是配置的身份认证的URI,是则执行下面的认证,不是则跳过    if (!requiresAuthentication(request, response)) {        chain.doFilter(request, response);        return;    }    ...    Authentication authResult;    try {        //关键方法, 实现认证逻辑并返回 Authentication, 由其子类 UsernamePasswordAuthenticationFilter 实现, 由下面 5.3 详解        authResult = attemptAuthentication(request, response);        if (authResult == null) {            // return immediately as subclass has indicated that it hasn't completed            // authentication            return;        }        sessionStrategy.onAuthentication(authResult, request, response);    }    catch (InternalAuthenticationServiceException failed) {        //认证失败调用...由下面 5.1 详解        unsuccessfulAuthentication(request, response, failed);        return;    }    catch (AuthenticationException failed) {        //认证失败调用...由下面 5.1 详解        unsuccessfulAuthentication(request, response, failed);        return;    }    // Authentication success    if (continueChainBeforeSuccessfulAuthentication) {        chain.doFilter(request, response);    }    //认证成功调用...由下面 5.2 详解    successfulAuthentication(request, response, chain, authResult);}

5.1 认证失败处理逻辑

protected void unsuccessfulAuthentication(HttpServletRequest request,                                          HttpServletResponse response, AuthenticationException failed)        throws IOException, ServletException {    SecurityContextHolder.clearContext();    ...    rememberMeServices.loginFail(request, response);    //该 handler 处理失败界面跳转和响应逻辑    failureHandler.onAuthenticationFailure(request, response, failed);}

这里默认配置的失败处理 handler 是 SimpleUrlAuthenticationFailureHandler,可自定义。

public class SimpleUrlAuthenticationFailureHandler implements        AuthenticationFailureHandler {    ...    public void onAuthenticationFailure(HttpServletRequest request,            HttpServletResponse response, AuthenticationException exception)            throws IOException, ServletException {        //没有配置失败跳转的URL则直接响应错误        if (defaultFailureUrl == null) {            logger.debug("No failure URL set, sending 401 Unauthorized error");            response.sendError(HttpStatus.UNAUTHORIZED.value(),                HttpStatus.UNAUTHORIZED.getReasonPhrase());        }        else {            //否则            //缓存异常            saveException(request, exception);            //根据配置的异常页面是重定向还是转发进行不同方式跳转            if (forwardToDestination) {                logger.debug("Forwarding to " + defaultFailureUrl);                request.getRequestDispatcher(defaultFailureUrl)                        .forward(request, response);            }            else {                logger.debug("Redirecting to " + defaultFailureUrl);                redirectStrategy.sendRedirect(request, response, defaultFailureUrl);            }        }    }    //缓存异常,转发则保存在request里面,重定向则保存在session里面    protected final void saveException(HttpServletRequest request,            AuthenticationException exception) {        if (forwardToDestination) {            request.setAttribute(WebAttributes.AUTHENTICATION_EXCEPTION, exception);        }        else {            HttpSession session = request.getSession(false);            if (session != null || allowSessionCreation) {                request.getSession().setAttribute(WebAttributes.AUTHENTICATION_EXCEPTION,                        exception);            }        }    }}

这里做下小拓展:用系统的错误处理handler,指定认证失败跳转的URL,在MVC里面对应的URL方法里面可以通过key从request或session里面拿到错误信息,反馈给前端

5.2 认证成功处理逻辑

protected void successfulAuthentication(HttpServletRequest request,                                        HttpServletResponse response, FilterChain chain, Authentication authResult)        throws IOException, ServletException {    ...    //这里要注意很重要,将认证完成返回的 Authentication 保存到线程对应的 `SecurityContext` 中    SecurityContextHolder.getContext().setAuthentication(authResult);    rememberMeServices.loginSuccess(request, response, authResult);    // Fire event    if (this.eventPublisher != null) {        eventPublisher.publishEvent(new InteractiveAuthenticationSuccessEvent(                authResult, this.getClass()));    }    //该 handler 就是为了完成页面跳转    successHandler.onAuthenticationSuccess(request, response, authResult);}

这里默认配置的成功处理 handler 是 SavedRequestAwareAuthenticationSuccessHandler,里面的代码就不做具体展开了,反正是跳转到指定的认证成功之后的界面,可自定义。

5.3 身份认证详情

public class UsernamePasswordAuthenticationFilter extends        AbstractAuthenticationProcessingFilter {    ...    public static final String SPRING_SECURITY_FORM_USERNAME_KEY = "username";    public static final String SPRING_SECURITY_FORM_PASSWORD_KEY = "password";    private String usernameParameter = SPRING_SECURITY_FORM_USERNAME_KEY;    private String passwordParameter = SPRING_SECURITY_FORM_PASSWORD_KEY;    private boolean postOnly = true;    ...    //开始身份认证逻辑    public Authentication attemptAuthentication(HttpServletRequest request,            HttpServletResponse response) throws AuthenticationException {        if (postOnly && !request.getMethod().equals("POST")) {            throw new AuthenticationServiceException(                    "Authentication method not supported: " + request.getMethod());        }        String username = obtainUsername(request);        String password = obtainPassword(request);        if (username == null) {            username = "";        }        if (password == null) {            password = "";        }        username = username.trim();        //先用前端提交过来的 username 和 password 封装一个简易的 AuthenticationToken        UsernamePasswordAuthenticationToken authRequest = new UsernamePasswordAuthenticationToken(                username, password);        // Allow subclasses to set the "details" property        setDetails(request, authRequest);        //具体的认证逻辑还是交给 AuthenticationManager 对象的 authenticate(..) 方法完成,接着往下看        return this.getAuthenticationManager().authenticate(authRequest);    }}

由源码断点跟踪得知,最终解析是由 AuthenticationManager 接口实现类 ProviderManager 来完成

public class ProviderManager implements AuthenticationManager, MessageSourceAware,        InitializingBean {    ...    private List<AuthenticationProvider> providers = Collections.emptyList();    ...        public Authentication authenticate(Authentication authentication)            throws AuthenticationException {        ....        //遍历所有的 AuthenticationProvider, 找到合适的完成身份验证        for (AuthenticationProvider provider : getProviders()) {            if (!provider.supports(toTest)) {                continue;            }            ...            try {                //进行具体的身份验证逻辑, 这里使用到的是 DaoAuthenticationProvider, 具体逻辑记着往下看                result = provider.authenticate(authentication);                if (result != null) {                    copyDetails(authentication, result);                    break;                }            }            catch             ...        }        ...        throw lastException;    }}

DaoAuthenticationProvider 继承自 AbstractUserDetailsAuthenticationProvider 实现了 AuthenticationProvider 接口

public abstract class AbstractUserDetailsAuthenticationProvider implements        AuthenticationProvider, InitializingBean, MessageSourceAware {    ...    private UserDetailsChecker preAuthenticationChecks = new DefaultPreAuthenticationChecks();    private UserDetailsChecker postAuthenticationChecks = new DefaultPostAuthenticationChecks();    ...    public Authentication authenticate(Authentication authentication)            throws AuthenticationException {        ...        // 获得提交过来的用户名        String username = (authentication.getPrincipal() == null) ? "NONE_PROVIDED"                : authentication.getName();        //根据用户名从缓存中查找 UserDetails        boolean cacheWasUsed = true;        UserDetails user = this.userCache.getUserFromCache(username);        if (user == null) {            cacheWasUsed = false;            try {                //缓存中没有则通过 retrieveUser(..) 方法查找 (看下面 DaoAuthenticationProvider 的实现)                user = retrieveUser(username,                        (UsernamePasswordAuthenticationToken) authentication);            }            catch             ...        }        try {            //比对前的检查,例如账户以一些状态信息(是否锁定, 过期...)            preAuthenticationChecks.check(user);            //子类实现比对规则 (看下面 DaoAuthenticationProvider 的实现)            additionalAuthenticationChecks(user,                    (UsernamePasswordAuthenticationToken) authentication);        }        catch (AuthenticationException exception) {            if (cacheWasUsed) {                // There was a problem, so try again after checking                // we're using latest data (i.e. not from the cache)                cacheWasUsed = false;                user = retrieveUser(username,                        (UsernamePasswordAuthenticationToken) authentication);                preAuthenticationChecks.check(user);                additionalAuthenticationChecks(user,                        (UsernamePasswordAuthenticationToken) authentication);            }            else {                throw exception;            }        }        postAuthenticationChecks.check(user);        if (!cacheWasUsed) {            this.userCache.putUserInCache(user);        }        Object principalToReturn = user;        if (forcePrincipalAsString) {            principalToReturn = user.getUsername();        }        //根据最终user的一些信息重新生成具体详细的 Authentication 对象并返回         return createSuccessAuthentication(principalToReturn, authentication, user);    }    //具体生成还是看子类实现    protected Authentication createSuccessAuthentication(Object principal,            Authentication authentication, UserDetails user) {        // Ensure we return the original credentials the user supplied,        // so subsequent attempts are successful even with encoded passwords.        // Also ensure we return the original getDetails(), so that future        // authentication events after cache expiry contain the details        UsernamePasswordAuthenticationToken result = new UsernamePasswordAuthenticationToken(                principal, authentication.getCredentials(),                authoritiesMapper.mapAuthorities(user.getAuthorities()));        result.setDetails(authentication.getDetails());        return result;    }}

接下来我们来看下 DaoAuthenticationProvider 里面的三个重要的方法,比对方式、获取需要比对的 UserDetails 对象以及生产最终返回 Authentication 的方法。

public class DaoAuthenticationProvider extends AbstractUserDetailsAuthenticationProvider {    ...    //密码比对    @SuppressWarnings("deprecation")    protected void additionalAuthenticationChecks(UserDetails userDetails,            UsernamePasswordAuthenticationToken authentication)            throws AuthenticationException {        if (authentication.getCredentials() == null) {            logger.debug("Authentication failed: no credentials provided");            throw new BadCredentialsException(messages.getMessage(                    "AbstractUserDetailsAuthenticationProvider.badCredentials",                    "Bad credentials"));        }        String presentedPassword = authentication.getCredentials().toString();        //通过 PasswordEncoder 进行密码比对, 注: 可自定义        if (!passwordEncoder.matches(presentedPassword, userDetails.getPassword())) {            logger.debug("Authentication failed: password does not match stored value");            throw new BadCredentialsException(messages.getMessage(                    "AbstractUserDetailsAuthenticationProvider.badCredentials",                    "Bad credentials"));        }    }    //通过 UserDetailsService 获取 UserDetails    protected final UserDetails retrieveUser(String username,            UsernamePasswordAuthenticationToken authentication)            throws AuthenticationException {        prepareTimingAttackProtection();        try {            //通过 UserDetailsService 获取 UserDetails            UserDetails loadedUser = this.getUserDetailsService().loadUserByUsername(username);            if (loadedUser == null) {                throw new InternalAuthenticationServiceException(                        "UserDetailsService returned null, which is an interface contract violation");            }            return loadedUser;        }        catch (UsernameNotFoundException ex) {            mitigateAgainstTimingAttack(authentication);            throw ex;        }        catch (InternalAuthenticationServiceException ex) {            throw ex;        }        catch (Exception ex) {            throw new InternalAuthenticationServiceException(ex.getMessage(), ex);        }    }    //生成身份认证通过后最终返回的 Authentication, 记录认证的身份信息    @Override    protected Authentication createSuccessAuthentication(Object principal,            Authentication authentication, UserDetails user) {        boolean upgradeEncoding = this.userDetailsPasswordService != null                && this.passwordEncoder.upgradeEncoding(user.getPassword());        if (upgradeEncoding) {            String presentedPassword = authentication.getCredentials().toString();            String newPassword = this.passwordEncoder.encode(presentedPassword);            user = this.userDetailsPasswordService.updatePassword(user, newPassword);        }        return super.createSuccessAuthentication(principal, authentication, user);    }}
